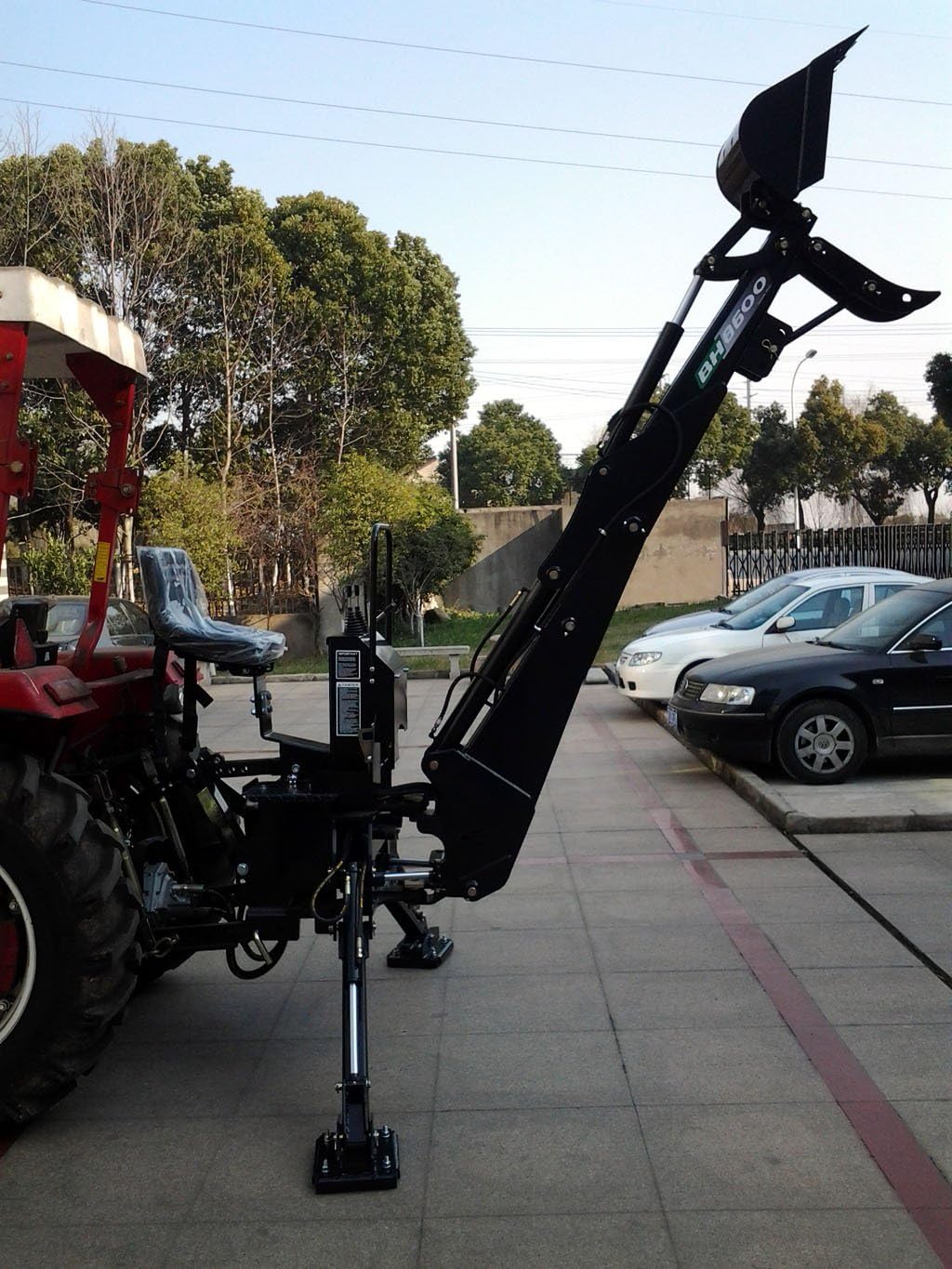

Category 1 BH8600 3 Point Hitch PTO Hydraulic Farm Tractor Backhoe Attachment Excavator with 15" Bucket

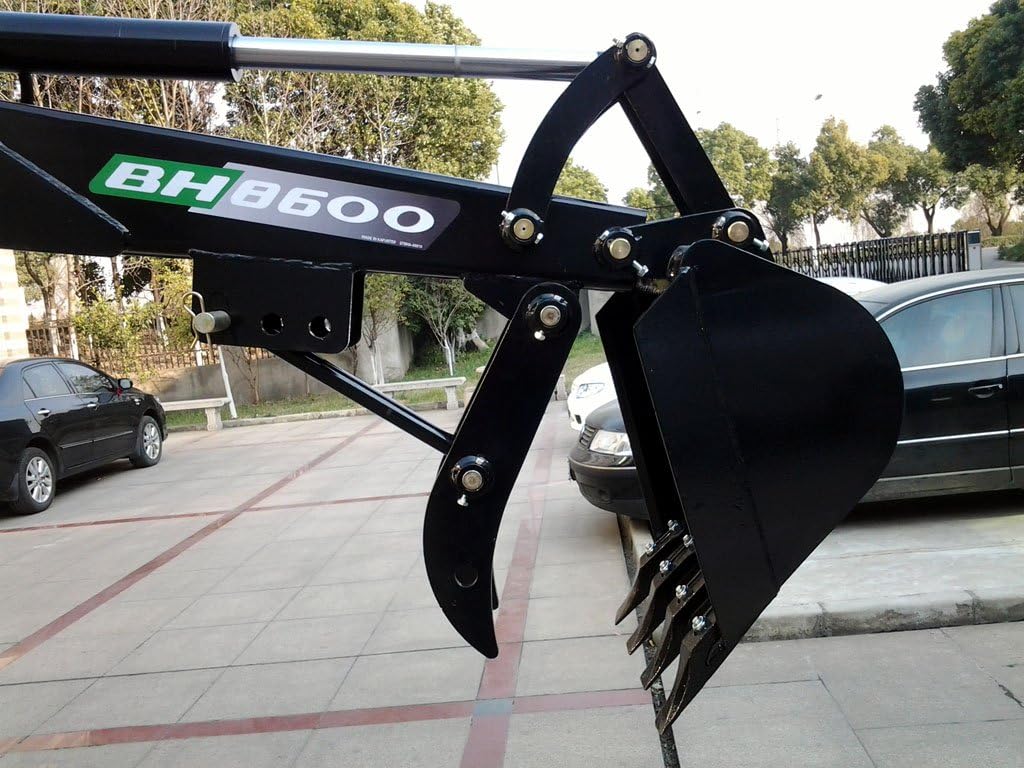

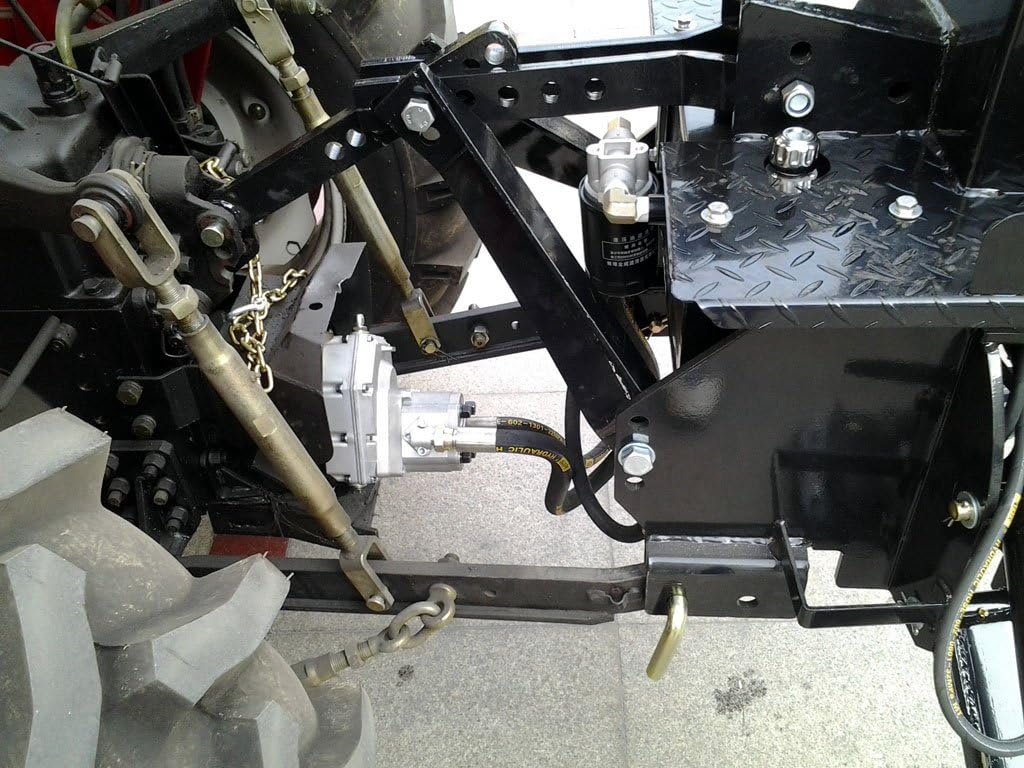

Model BH8600 3 Point Pitch Backhoe Attachment, black in color and comes with a bucket, thumb, and tank. Includes: 15" Bucket, PTO pump, thumb attachment, and hydraulic oil tank.

Ships via Freight Courier with curbside delivery or dock unload only. Curbside delivery is done so via Lift Gate.  Local pickup in the San Marcos, CA area available for a discounted price!

Hydraulic Pressure Requirements: 2000psi Recommended Tractor HP: 16-25+HP. Connects to a Category 1 Sized 3 Point Hitch.

 Category 1, Maximum Digging Force: 6,706 Lbs., Maximum Digging Depth: 9' (8' 6" 2 foot flat bottom), 15" Bucket, Thumb Attachment, and PTO Pump Included.

Self Contained, no need to run off tractors hydraulics, Swing Arc: 180 degrees, Loading Height (Bucket at 60): 5' 20", Reach from Center Line of Swing Pivot: 9'8".

Transport Height (Maximum): 7' 6", Recommended for Tractors 35-55HP, Bucket Rotation: 180 degrees, Loading Reach (Bucket at 60): 4' 2".

Transport Overhang: 3' 7", Stabilizer Spread (Down Position): 8' 4", Stabilizer Spread (Up Position): 7' 1", Bucket Cylinder Digging Force: 3210 lbs.

Dipper-stick Cylinder Digging Force: 2745 lbs, Hydraulic Volume Requirements: 5 to 6 GPM, Hydraulic Pressure Requirements: 2250 psi.

Shipping Weight: 1025 lbs (not including the bucket), 1 Year Warranty (Parts).
