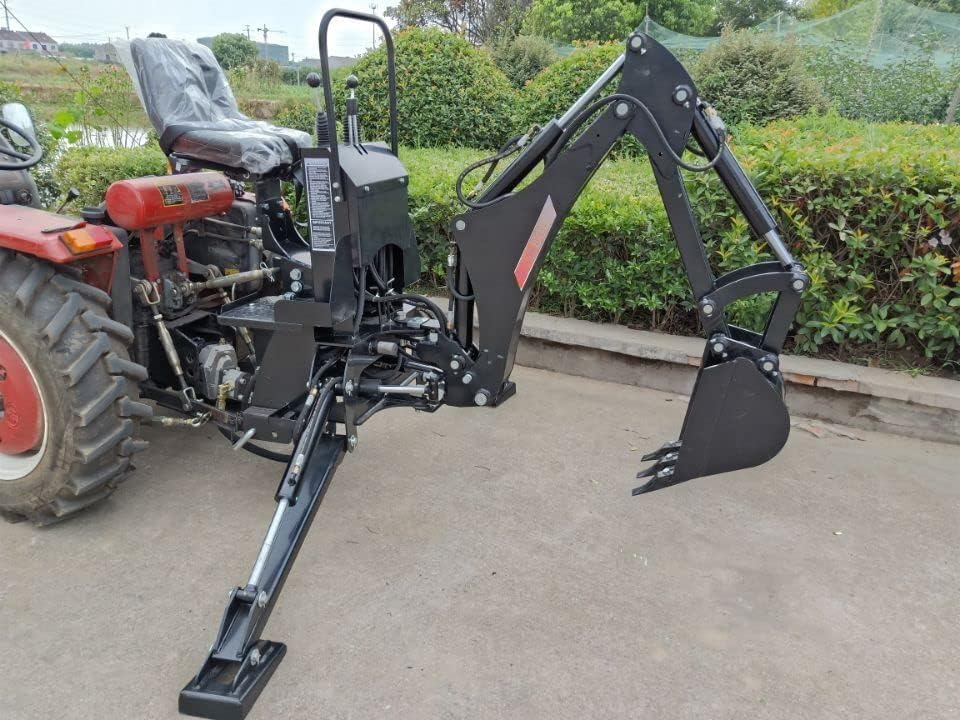

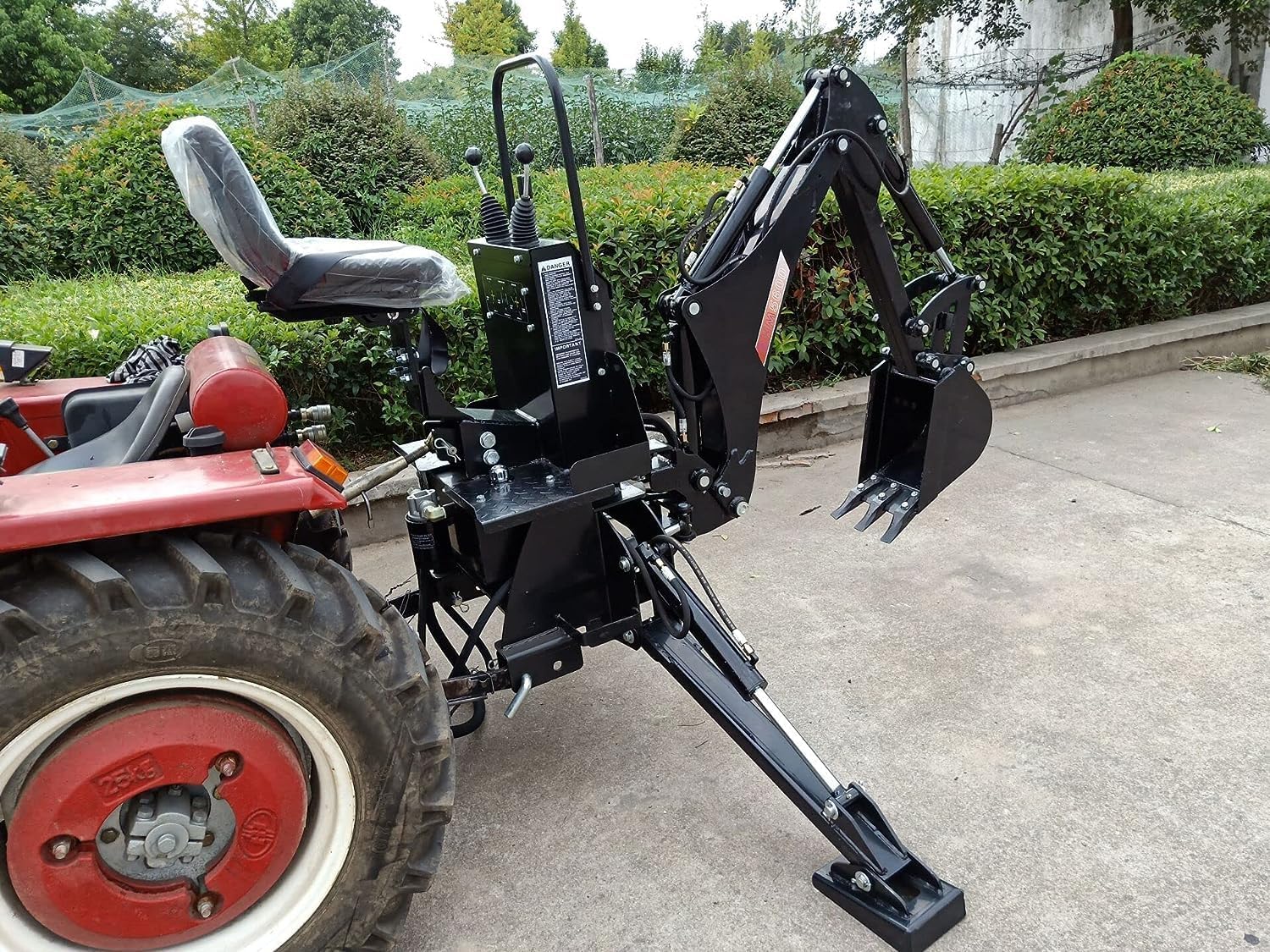

Category 1 BHM5600 3 Point Hitch PTO Hydraulic Farm Backhoe Tractor Attachment Excavator with 10" OR 15" Bucket and Tank

Model BHM5600 3 Point Pitch Backhoe Attachment, black in color and comes with a bucket, thumb, and tank. 10" or 15" bucket available, we will contact you to see which one is wanted before shipping.

Ships via Freight Courier with curbside /edge of the driveway delivery or dock unload only. Curbside delivery is done so via Lift Gate.  Local pickup in the Vista, CA area available for a discounted price!

Hydraulic Pressure Requirements: 2000psi Recommended Tractor HP: 16-25+HP. Connects to a Category 1 Sized 3 Point Hitch.

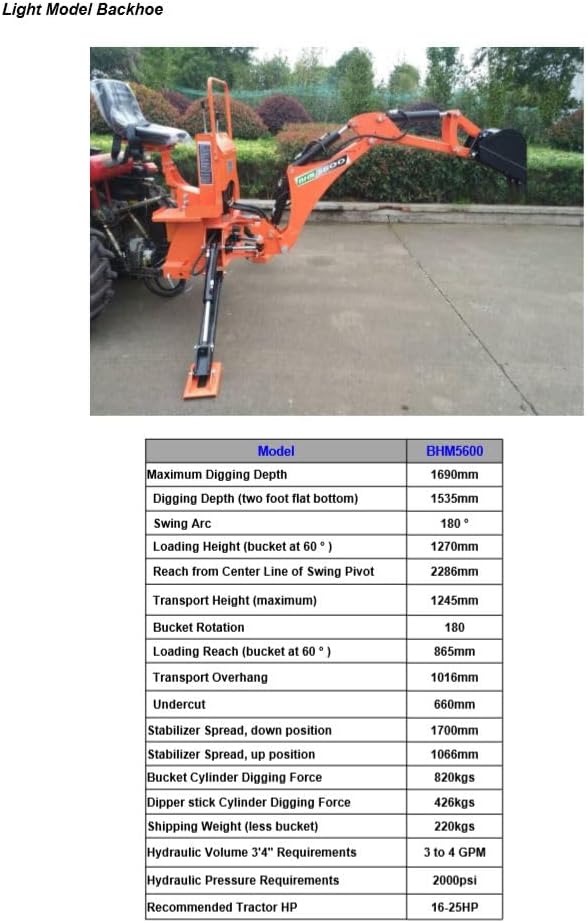

 Model BHM5600 with 10" Bucket, Maximum Digging Force: 4,928 Lbs., Maximum Digging Depth: 6' Ft, Digging Depth (two foot flat bottom): 5.5' Ft, Swing Arc: 180 °, Loading Height (bucket at 60°): 50".

Reach from Center Line of Swing Pivot: 90", Transport Height (maximum): 49", Bucket Rotation: 180 Degrees, Loading Reach (bucket at 60 °): 34", Transport Overhang: 40", Undercut: 26".

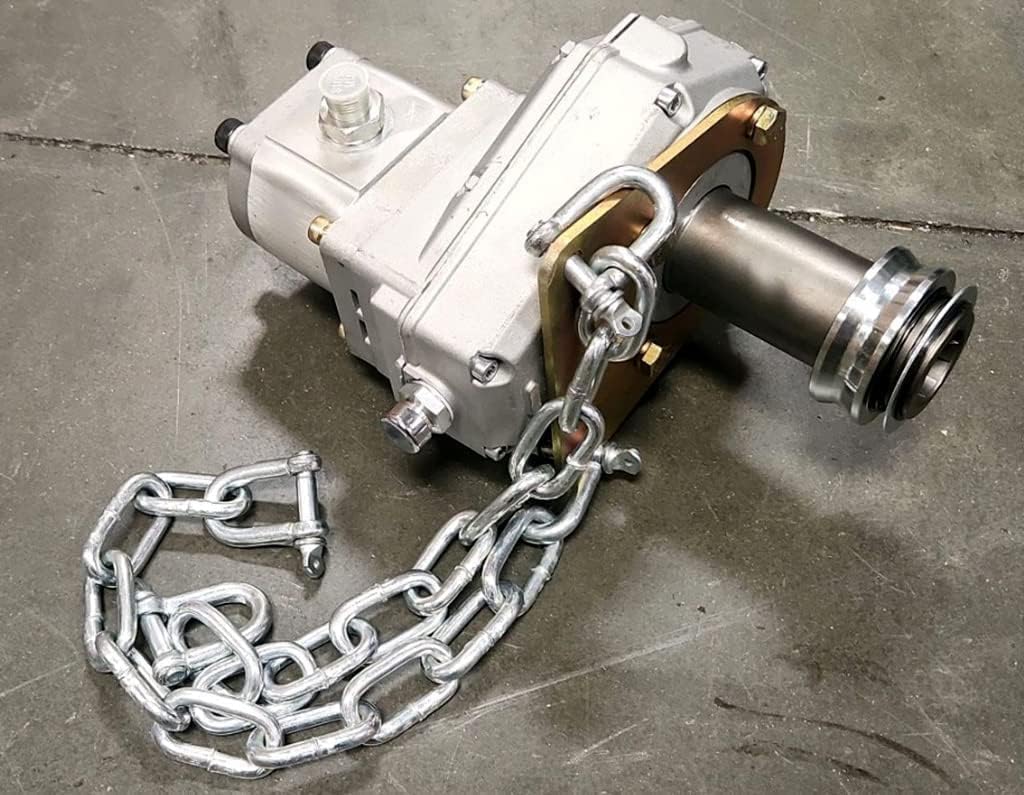

Hydraulic Volume 3'4", Requirements 3 to 4 GPM (PTO PUMP AND TANK INCLUDED), Hydraulic Pressure Requirements: 2000psi Recommended Tractor HP: 16-25+HP. Connects to a Category 1 Sized 3 Point Hitch.

Stabilizer Spread, down position: 67". Stabilizer Spread, up position: 42", Bucket Cylinder Digging Force: 1810lbs, Dipper stick Cylinder Digging Force: 940lbs.

Product Weight (Less bucket, thumb, and fluids): 675lbs, Shipping Weight: 900lb. Ships LTL Freight with curbside delivery only.
